Atlas Forms Control Library: Everything You Need to Know

[AdminBizfirst]

Category: Atlas Forms — Developers & Designers
Tags: atlas-forms controls control-library custom-controls form-schema react

---

Hey team

Atlas Forms ships with 88+ built-in controls — and if none of them fit your use case exactly, you can build your own. This post is the definitive reference for what’s available, how the control registry works, and how to create and register a custom control from scratch.

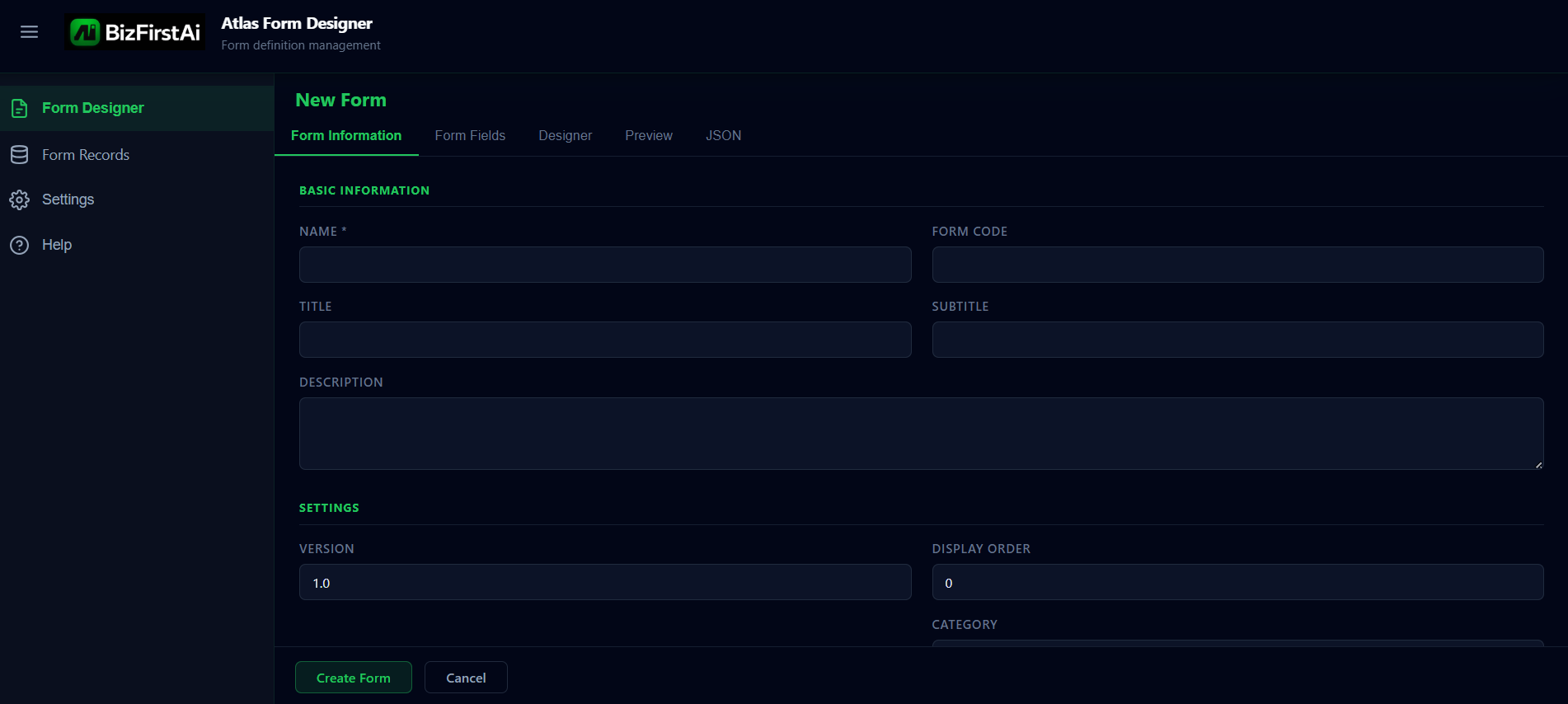

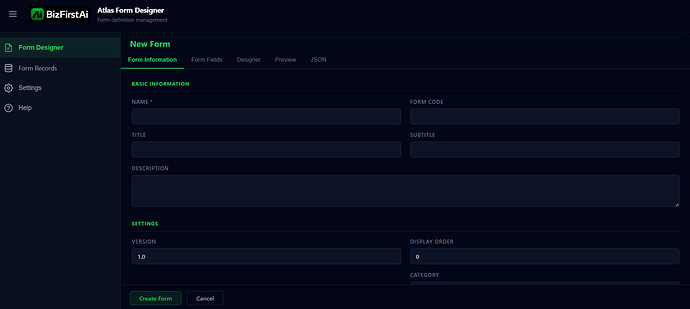

Whether you’re a designer picking controls in Form Studio or a developer wiring up a custom component, this has what you need.

---

TL;DR

• Every control is identified by a type string in the form schema JSON — the engine looks this up in the control registry to find the React component to render

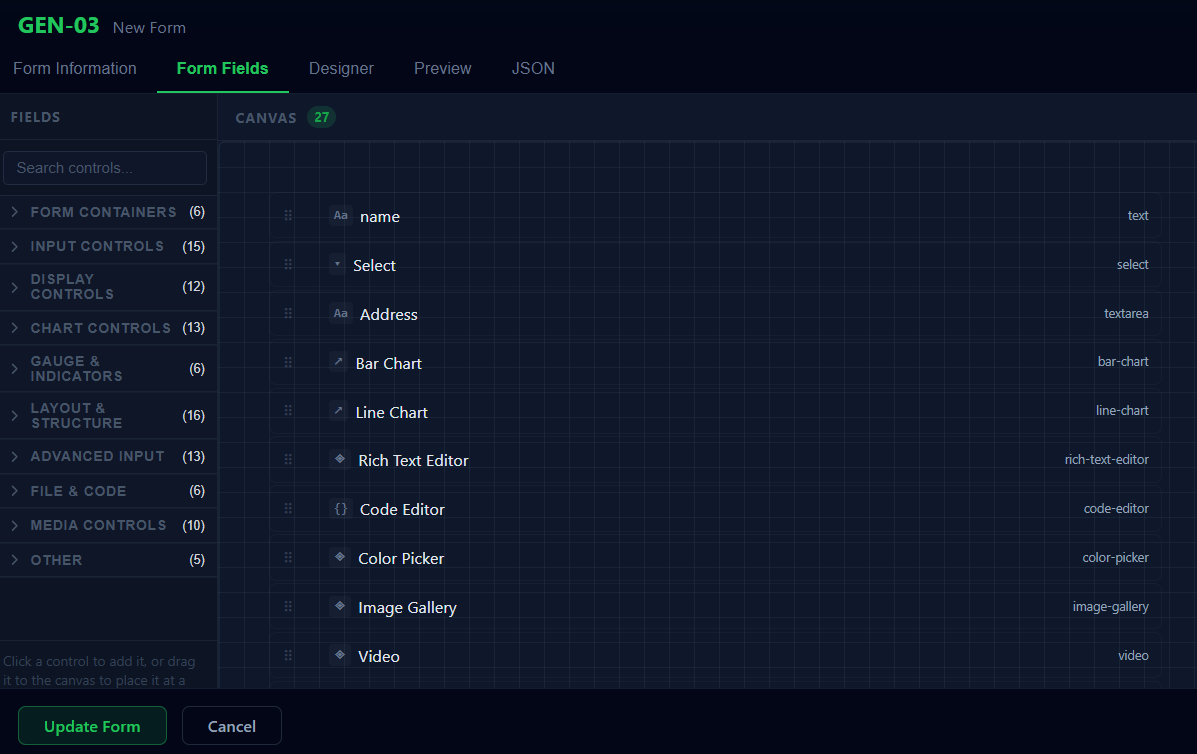

• Controls are grouped into 7 categories: Input, Display, Chart, Gauge & Indicator, Layout & Structure, Advanced Input, File & Code
• To build a custom control: create a React component implementing ControlProps, define a ControlPlugin, and call controlRegistry.register() at app startup
• Register before the first render — registering after means the engine won’t find your control
• The propertySchema you define drives the designer’s property panel automatically — no extra UI code needed

---

How the Control Registry Works

A form schema is a JSON document. Each field has a type property:

{
  "id": "customer_email",
  "type": "email",
  "label": "Customer Email",
  "required": true
}

When Atlas Forms renders this, it looks up "email" in the control registry, finds the registered React component, and mounts it with the resolved config. This means:

• Swap out any built-in control without touching form schemas
• Add entirely new control types
• Override defaults per-instance via the schema

Every registry entry conforms to the ControlPlugin interface:

interface ControlPlugin {
  type: string;                    // unique identifier, e.g. 'text'
  label: string;                   // name shown in the designer toolbar
  category: string;                // toolbar group, e.g. 'Input'
  description: string;             // tooltip / docs string
  icon: string;                    // icon key used by the designer UI
  defaultConfig: object;           // defaults applied when a new instance is created
  supportedValidations: string[];  // which built-in validators are available
  propertySchema: object;          // drives the property panel in the designer
  component?: React.ComponentType; // the React component (omitted for built-ins)
}

The propertySchema is particularly useful: any property you define here automatically appears as an editable field in the designer’s property panel — no extra UI code required.

---

Input Controls

14 controls that capture user input and participate in validation and data binding.

Control Type	Description	Key Properties	Validations	Use Case
text	Single-line text	placeholder, maxLength, minLength, pattern, autoComplete	required, minLength, maxLength, pattern	Names, short free-text
textarea	Multi-line text	placeholder, rows, cols, maxLength, autoResize	required, minLength, maxLength	Comments, notes
number	Numeric input with step controls	min, max, step, precision, prefix, suffix	required, min, max, integer	Quantities, prices
email	Email with format enforcement	placeholder, maxLength, allowMultiple	required, email, maxLength	Contact, registration
url	URL with protocol validation	placeholder, allowedProtocols	required, url	Website fields
password	Masked text	minLength, showStrengthMeter, toggleVisibility	required, minLength, pattern	Login, account creation
select	Single-value dropdown	options, placeholder, searchable, clearable	required	Status, categories
multiselect	Multi-value dropdown	options, maxSelections, searchable	required, minSelections, maxSelections	Tags, multi-category
checkbox	Boolean tick box	labelPosition, indeterminate	required	Consent flags, toggles
radio	Single selection from visible list	options, layout, allowDeselect	required	Mutually exclusive choices
switch	Toggle switch	onLabel, offLabel, size, color	required	Feature flags, on/off
date	Date picker	format, minDate, maxDate, disabledDates, locale	required, minDate, maxDate	Birthdates, scheduling
datetime	Date and time picker	format, minDateTime, maxDateTime, timezone, step	required, minDateTime, maxDateTime	Appointments, timestamps
json-editor	Inline JSON with syntax highlighting	schema, height, readOnly	required, jsonSchema	Configuration fields

---

Display Controls

11 controls that render content — they don’t emit form values but can participate in conditional visibility and data binding.

Control Type	Description	Key Properties	Use Case
label	Static text	text, variant, color, align	Annotations, instructions
header	Section heading	text, level (h1–h6), divider, align	Section separation
image	Static or dynamic image	src, alt, width, height, objectFit, fallbackSrc	Logos, illustrations
video	Embedded video player	src, poster, autoPlay, controls, loop, muted	Tutorial videos
audio	Audio player	src, autoPlay, controls, loop	Pronunciation guides
mermaid	Renders a Mermaid diagram	definition (Mermaid DSL), theme, zoom	Flowcharts, sequence diagrams
article	Formatted long-form content	content (Markdown or HTML), maxHeight, scroll	Policy text, help articles
html	Raw HTML output	content, sanitize, sandbox	Custom markup
css	Injects scoped CSS	styles, scope (form/global)	Per-form styling
pdf-viewer	Embeds a PDF for reading	src, height, showToolbar, initialPage	Contracts, reference docs
iframe-viewer	Embeds an external URL	src, height, allowFullscreen, sandbox	Third-party widgets

---

Chart Controls

13 data visualization controls. Data is bound to a form variable or API response. All share title, data, width, height, colorScheme, and responsive.

Control Type	Description	Use Case
bar-chart	Vertical or horizontal bar chart	Category comparisons
line-chart	Line or multi-series line chart	Time-series trends
pie-chart	Pie or donut chart	Part-to-whole proportions
area-chart	Filled area chart	Cumulative volume over time
scatter-plot	X/Y scatter with optional bubble sizing	Correlation analysis
bubble-chart	Three-dimensional scatter (X, Y, size)	Multi-variable comparisons
histogram	Frequency distribution	Statistical distributions
waterfall-chart	Running total with +/- bars	Financial variance, P&L
tree-map	Hierarchical rectangular treemap	Proportional hierarchies
heatmap	2D color-intensity matrix	Activity calendars, correlations
sankey-diagram	Flow diagram with proportional bands	Process flows, fund flows
network-graph	Force-directed node-link diagram	Relationship maps
gantt-chart	Project timeline	Scheduling, roadmaps

---

Gauge & Indicator Controls

6 controls that display a single numeric metric — no user input, no form value.

Control Type	Description	Use Case
circular-gauge	Radial arc gauge	KPIs, utilization meters
linear-gauge	Horizontal or vertical bar gauge	Progress toward a target
thermometer	Vertical thermometer visual	Temperature, fill indicators
progress-ring	Circular progress (0–100)	Task completion
password-strength-meter	Visual password strength indicator	Account registration
kpi-card	Metric card with trend indicator	Executive dashboards

---

Layout & Structure Controls

16 controls that organize other controls and govern navigation flow. These are container controls — they hold child controls as structural nodes in the schema tree.

Control Type	Description	Use Case
card-container	Bordered card wrapper	Grouping related fields
collapsible-panel	Expandable/collapsible section	Optional field groups
modal	Overlay dialog	Confirmations, detail views
enhanced-tabs	Tabbed content area	Multi-step data entry
accordion	Stacked collapsible panels	FAQ sections, grouped settings
stepper	Wizard-style multi-step layout	Onboarding flows
breadcrumb	Navigation breadcrumb trail	Deep-hierarchy navigation
sidebar-nav	Persistent sidebar panel	Complex multi-section apps
data-table	Sortable, filterable, paginated grid	Tabular review and editing
api-response-viewer	Displays raw API response payloads	Debugging panels
variable-inspector	Shows current form variable state	Development debugging
timeline	Vertical event timeline	Activity logs, process history
conditional-logic-viewer	Visualises active conditional rules	Logic debugging
analytics-dashboard	Composite dashboard of chart controls	Embedded reporting
database-query-builder	Visual SQL-like query builder	Ad-hoc filtering
form-container	Embeds a nested child form	Sub-forms, master-detail layouts

form-container tip: Set propagateValidation: true to roll the child form’s validation state up into the parent — the parent won’t submit unless the embedded form is also valid. Child values are written to the parent data model at the path you specify in dataPath.

---

Advanced Input Controls

13 controls for richer data types and more complex interaction patterns.

Control Type	Description	Use Case
rich-text-editor	WYSIWYG with formatting toolbar	Blog posts, formatted notes
code-editor	Syntax-highlighted code editor	Configuration, script input
color-picker	Color selection with hex/rgb input	Theme customization
slider-range	Single or dual-handle range slider	Price filters, percentage
date-range-picker	Dual calendar for start/end dates	Booking, report ranges
time-picker	Hour/minute/second selection	Scheduling, opening hours
location-picker	Map-based coordinate/address picker	Delivery addresses, venues
tree-select	Hierarchical tree, single selection	Category trees, org charts
cascading-select	Multi-level chained dropdowns	Country / region / city
multi-select-search	Searchable multi-select with async load	User/tag lookup
tag-input	Free-form tag entry	Keyword tagging
enhanced-json-editor	Full JSON editor with schema validation	Complex config objects
key-value-pairs	Dynamic list of key-value entries	HTTP headers, env variables

---

File & Code Controls

6 controls for file assets and code blocks within a form.

Control Type	Description	Use Case
css-file-selector	File picker filtered to .css files	Importing stylesheets
js-file-selector	File picker filtered to .js/.ts files	Uploading scripts
javascript-block	Inline JS executed in the form sandbox	Custom calculations
style-block	Inline CSS applied to the form	Runtime style overrides
html-block	Raw HTML rendered as a form element	Custom markup, embeds
asset-manager	Browse, upload, and reference media	Image uploads, attachments

---

Building a Custom Control

Here’s the full walkthrough — we’ll build a rating control (1–5 stars).

Step 1: Create the React Component

Your component receives ControlProps: value, onChange, config, and validationState.

// src/controls/RatingControl.tsx
import React from 'react';
import type { ControlProps } from '@atlas-forms/types';

interface RatingConfig {
  maxStars: number;
  allowHalf: boolean;
}

const RatingControl: React.FC<ControlProps<number, RatingConfig>> = ({
  value,
  onChange,
  config,
  validationState,
}) => {
  const { maxStars = 5 } = config;

  return (
    <div
      className={`af-rating ${validationState?.invalid ? 'af-rating--error' : ''}`}
      role="group"
      aria-label="Star rating"
    >
      {Array.from({ length: maxStars }, (_, i) => i + 1).map((star) => (
        <button
          key={star}
          type="button"
          aria-label={`${star} star${star > 1 ? 's' : ''}`}
          aria-pressed={value >= star}
          className={`af-rating__star ${value >= star ? 'af-rating__star--active' : ''}`}
          onClick={() => onChange(star)}
        >
          ★
        </button>
      ))}
      {validationState?.message && (
        <span className="af-rating__error">{validationState.message}</span>
      )}
    </div>
  );
};

export default RatingControl;

Key rules:

• Call onChange(newValue) on change — don’t manage value in local state
• Respect config for all behaviour variations
• Render validationState.message when present
• Respect disabled and readOnly props from ControlProps

Step 2: Define the ControlPlugin

// src/controls/ratingPlugin.ts
import type { ControlPlugin } from '@atlas-forms/control-registry-js';
import RatingControl from './RatingControl';

const ratingPlugin: ControlPlugin = {
  type: 'rating',
  label: 'Star Rating',
  category: 'Input',
  description: '1–5 star rating selector for satisfaction surveys.',
  icon: 'star',
  defaultConfig: { maxStars: 5, allowHalf: false },
  supportedValidations: ['required'],
  component: RatingControl,
  propertySchema: {
    maxStars: { type: 'number', label: 'Max Stars', default: 5, min: 1, max: 10 },
    allowHalf: { type: 'boolean', label: 'Allow Half Stars', default: false },
  },
};

export default ratingPlugin;

Step 3: Register at App Startup

// src/main.tsx
import { controlRegistry } from '@atlas-forms/control-registry-js';
import ratingPlugin from './controls/ratingPlugin';

controlRegistry.register(ratingPlugin);

register() throws if the type is already taken. Use controlRegistry.registerOrReplace(plugin) to override a built-in, or unregister('rating') first.

Step 4: Use in a Form Schema

{
  "id": "product_rating",
  "type": "rating",
  "label": "How would you rate this product?",
  "required": true,
  "config": { "maxStars": 5, "allowHalf": false }
}

Step 5: Designer Toolbar

Your control appears automatically in the Input group once registered. To control its position:

const ratingPlugin: ControlPlugin = {
  // ...
  sortOrder: 50,  // built-ins range 0–100; lower numbers appear first
};

If you’re packaging controls as a shared library, export the plugins and document that consumers must call controlRegistry.register() in their entry point. Don’t auto-register on import — it breaks tree-shaking and SSR.

---

Common Control Properties

These are recognised by the engine across most controls:

Property	Type	Default	Description
id	string	—	Required. Unique identifier; key in submitted data
label	string	""	Visible label; supports {{variableName}} interpolation
placeholder	string	""	Ghost text in empty inputs
defaultValue	any	undefined	Pre-populated value on load
required	boolean	false	Marks field as mandatory
disabled	boolean	false	Blocks interaction; value still submitted
readOnly	boolean	false	Shows value without allowing edits
hidden	boolean	false	Hides from UI; value still in data model
className	string	""	Extra CSS class names on the root element
validationRules	ValidationRule[]	[]	Array of validation rule objects
conditionalVisibility	ConditionGroup	undefined	Declarative show/hide based on other field values
dataPath	string	undefined	Dot-notation two-way binding path (e.g., "customer.address.city")
tooltip	string	undefined	Info text shown in a tooltip beside the label
helpText	string	undefined	Persistent help text below the control

Validation Rule Schema

interface ValidationRule {
  type: string;      // 'required', 'minLength', 'pattern', 'custom', etc.
  value?: any;       // rule parameter — e.g. 5 for minLength, regex for pattern
  message?: string;  // override the default error message
  trigger?: 'onChange' | 'onBlur' | 'onSubmit'; // default: 'onBlur'
}

Example — a username field with layered rules:

{
  "id": "username",
  "type": "text",
  "label": "Username",
  "required": true,
  "validationRules": [
    { "type": "minLength", "value": 3, "message": "Username must be at least 3 characters." },
    { "type": "maxLength", "value": 20 },
    { "type": "pattern", "value": "^[a-zA-Z0-9_]+$", "message": "Only letters, numbers, and underscores are allowed." }
  ]
}

---

Community Discussion

1. Which controls are you using most? Would be useful to know what’s getting real usage vs. what’s more niche.
2. Custom controls — has anyone in the team built one? If you share your ControlPlugin here, others can reuse it instead of rebuilding from scratch.
3. form-container for sub-forms — has anyone used it for a master-detail layout? The propagateValidation behaviour is interesting — would love to see a real-world example.
4. Chart controls in forms — embedding dashboards inside a form is a less obvious use case. If you’ve done it, share how you bound the chart data.
5. Gaps? — if you’re looking for a control that isn’t in the list, call it out. Might already exist under a different name, or might be worth adding to the backlog.

---

Last updated: 2026-04-08 | Atlas Forms 1.x
